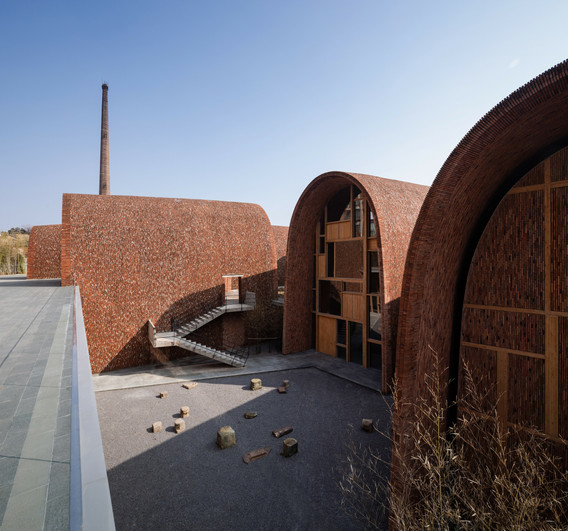

Studio Zhu-Pei, Zhu Pei. Jingdezhen Imperial Kiln Museum, Jingdezhen, Jiangxi, China. 2016–20. View toward the open vaults. Photo: schranimage. Courtesy Studio Zhu-Pei. © 2021 Zhu Pei

The recently completed Jingdezhen Imperial Kiln Museum, designed by Studio Zhu-Pei, occupies a prominent site in the historic center of Jingdezhen. Often referred to as China’s porcelain capital, the city was previously home to the Imperial Kilns of the Ming (1368–1644) and Qing (1636–1912) dynasties, the ruins of which can be found in the project’s immediate vicinity. The spatial organization of the museum is produced by the repetition and variation of a basic structural unit—a double brick masonry vault with poured concrete in between—which creates a series of cavernous spaces for the presentation of the museum’s collections. This element references the geometry, materials, and structural efficiency of traditional kilns, many of which can still be found nearby. In keeping with the local custom of demolishing aging furnaces every two to three years and reusing their material for other structures, the new museum incorporates both newly fired and recycled bricks amassed from the disassembly of old furnaces.

Recently we corresponded via email with Zhu Pei about his design for the museum, which is featured in MoMA’s exhibition Reuse, Renew, Recycle: Recent Architecture from China, opening on September 18.

Evangelos Kotsioris and Martino Stierli: How did the form and the organization of the Imperial Kiln Museum come about?

Zhu Pei: The early settlement of the city of Jingdezhen was developed around kilns. People used the kilns as social and public gathering spaces. In the winter, school classes were taught near them to make use of the radiating heat. As a result, a unique culture developed that was strongly connected to the process of porcelain production.

The museum is composed of eight brick vaults inspired by the traditional form of the kilns. The open and enclosed vaults were arranged at a distance from each other. This arrangement not only blocks the sunlight on the west side, offering shelter from sun and rain, but also transforms each vault into a wind tunnel, allowing the cool breeze to flow in and to capture the south-north wind in summer. Therefore, the form of the museum is adaptive to the local climate, providing natural sunlight and cross ventilation without the need for air conditioning.

In these ways, the design aims to rediscover and highlight the city’s cultural roots. By introducing a series of innovations in its organization and materials, the goal was to not only produce a contemporary museum experience, but also re-create the connection between kilns, porcelain production, and people.

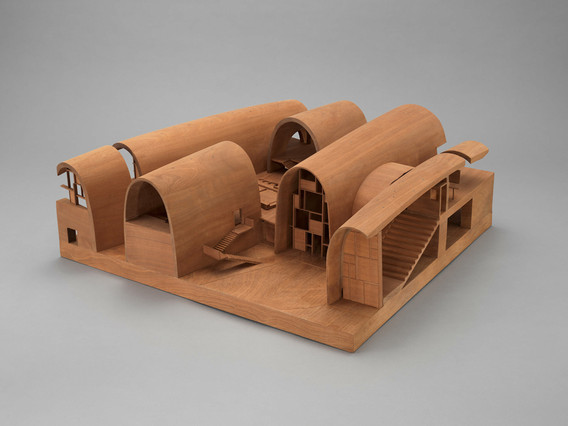

Studio Zhu-Pei. Fragment model of the Jingdezhen Imperial Kiln Museum

Studio Zhu-Pei. Fragment model of the Jingdezhen Imperial Kiln Museum

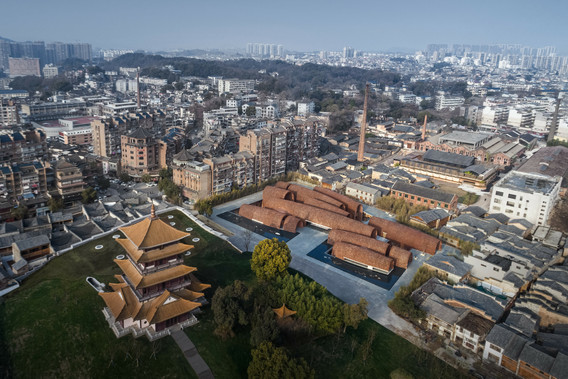

Aerial view of the Jingdezhen Imperial Kiln Museum

Aerial view of the Jingdezhen Imperial Kiln Museum

What was the concept behind the placement of the project on the historical site it occupies?

The Imperial Kiln Museum aims to weave together the fragmented but diverse urban fabric around it through the strategy of incompleteness—both physical and cultural.

In terms of formal and spatial incompleteness, the museum is composed of eight brick vaults, with a zigzag form that’s intended to “bind” the historical blocks around it. The long axis of eight brick vaults is arranged along the north-south axis, with two ends of each vault open. Among the vaults, five sunken courtyards are inserted. Such a porous composition can bring in natural light, wind, and scenic views into the museum in order to achieve spatial integration with the surrounding context.

The design is also inspired by local culture. While the vault structures of the museum adopt the age-old architectural form of the kiln, this form is transformed through a contemporary geometric language that still resonates with the shared memory of the local residents. Through the flexibility of its programs and activities, the museum intentionally adopts a certain level of incompleteness that can accommodate potential changes in the future.

This initial concept of incompleteness was further strengthened by the unexpected discovery of a number of ruins of the city’s Imperial Kiln on this site during the construction process. To fully preserve the ruins, the museum was redesigned to accommodate the finds as a cherished part of the complex.

What was the thinking behind mixing both recycled and new materials in the project?

The materials of the museum are predominantly new bricks mixed with recycled old kiln bricks to reflect the local culture of construction. Using recycled kiln bricks to build is a tradition in Jingdezhen, since brick kilns have to be demolished and rebuilt every few years in order to ensure their thermal performance. This interweaving of old and new elements creates curiosity. It evokes a spontaneous sense of nostalgia, while at the same time raising questions for the museum’s visitors. The past is preserved but transformed into a contemporary experience—a kind of contemporary archaeology.

The basic structure is a vault system. It is made of concrete poured in between two layers of brick walls. In addition to bricks, fair-faced concrete and wood are almost the only other materials. Concrete ceilings, stairs, and wood frame windows create a harmonious rhythm of natural materials, reflecting the artistic and cultural spirit of local craftsmanship.

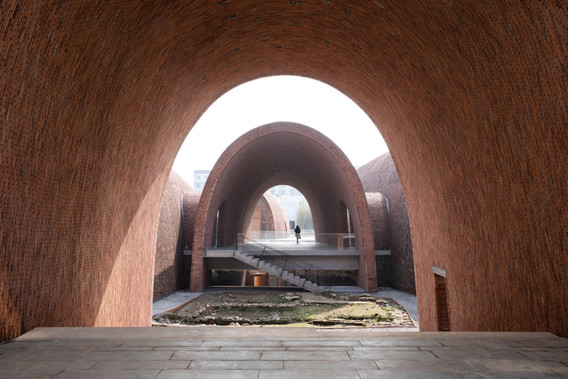

View from the amphitheater to Ming porcelain kiln ruins

View from the amphitheater to Ming porcelain kiln ruins

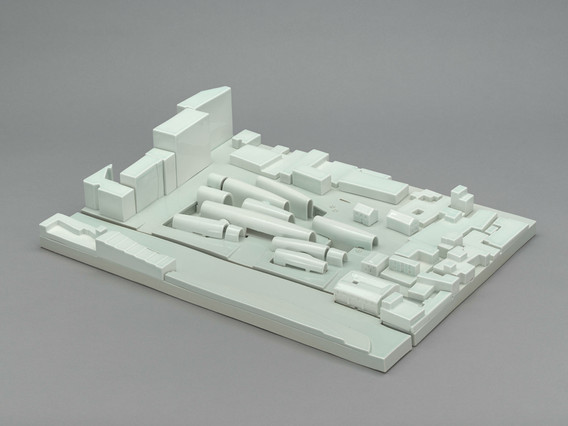

Porcelain model of the Jingdezhen Imperial Kiln Museum

Porcelain model of the Jingdezhen Imperial Kiln Museum

Along with a series of hand-drawn sketches, digital drawings, photographs, and videos, this project is represented in the exhibition by a unique model made of porcelain. What did this choice of material represent?

Jingdezhen used to be the porcelain capital of the world; the life’s work of the people who traveled here was to build kilns and make porcelain. Porcelain was the symbol of Jingdezhen and the highest representation of China’s artistic spirit.

Constructing the site model of this project out of porcelain represents two things: on the one hand, the seamless integration of history and contemporary culture; and on the other, a process of transforming a traditional idea of a representational architectural model into a kind of abstract artwork.

How would you interpret the increased interest in the practices of reuse, renewal, and recycling by architects in China? And how did it arise in your own practice?

The theme of the exhibition is extremely meaningful in the current moment from a global point of view, especially in China. The most serious challenge facing mankind is climate change, and the rupture of regional culture. Reusing, renewing, and recycling are some of the most intelligent methods to help conserve energy and protect the natural environment. In China, there is a tradition of reusing old wooden frames and materials to build new buildings; the so-called “use of the useless,” which echoes an ancient Chinese philosophy. This tradition is not merely about conserving materials, but also about the continuation of historical memory and cultural identity.

In the last 15 years, I have worked on many renovation and rehabilitation projects, ranging from a small-scale traditional Beijing courtyard house to large industrial factory buildings. In that respect, the ancient wisdom of “the use of the useless” has been really essential to my architectural practice.

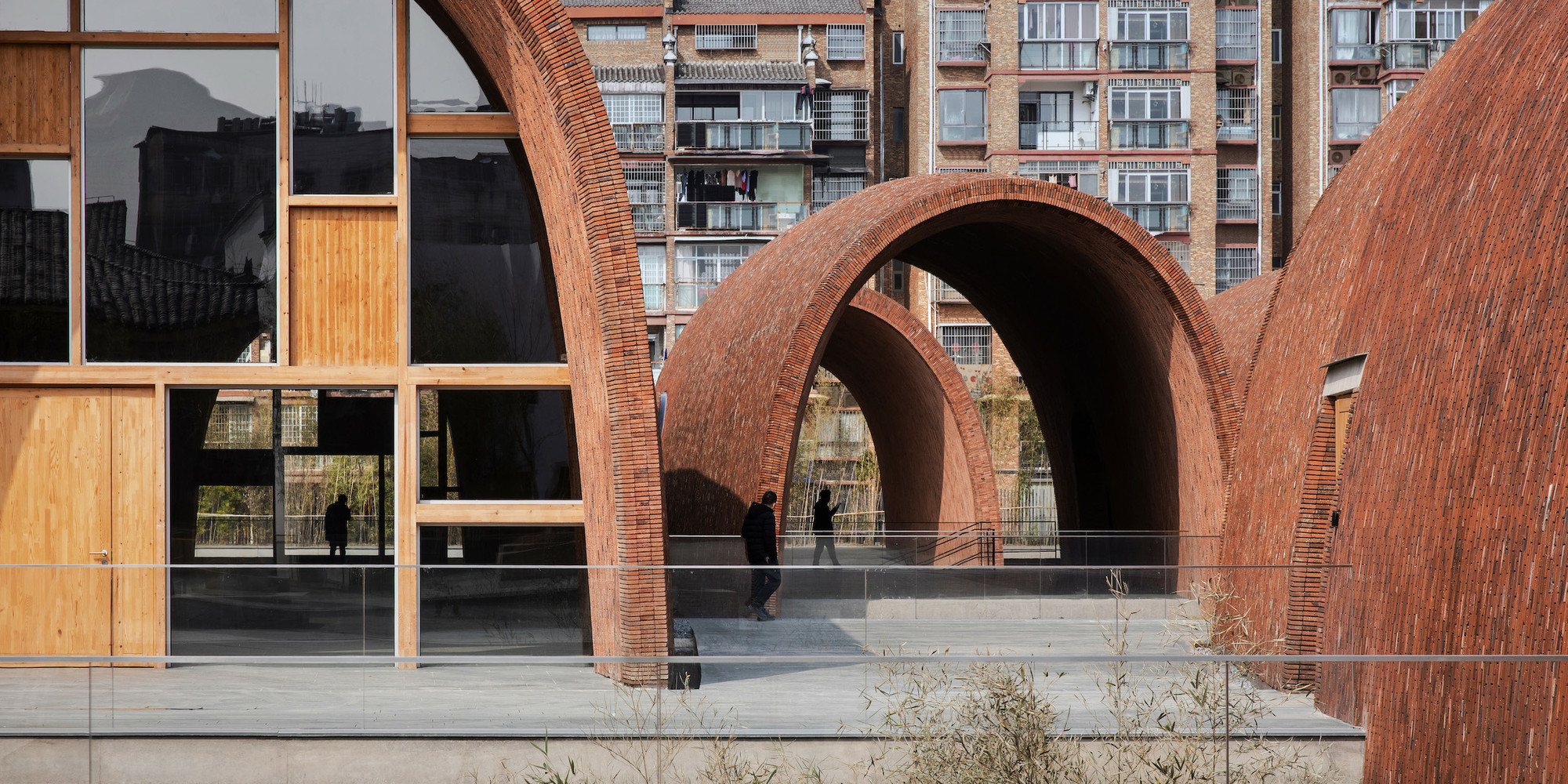

view of the Jingdezhen Imperial Kiln Museum

view of the Jingdezhen Imperial Kiln Museum

Reuse, Renew, Recycle: Recent Architecture from China, organized by Martino Stierli, The Philip Johnson Chief Curator of Architecture and Design, and Evangelos Kotsioris, Assistant Curator, Department of Architecture and Design, is on view at MoMA September 18, 2021, through July 4, 2022.
