A section drawing (also called a section, or sectional drawing) depicts a structure as though it had been sliced in half or cut along an imaginary plane, usually at a vertical orientation, allowing the viewer to see the interior of a building and, if applicable, its different levels or floors.
Works
8 works online
-
Raimund Abraham The House without Rooms Project, Elevation and plan 1974
-
Raimund Abraham Hospital: House of Hope, Houses of Birth, Houses of No Return, project, Venice, Italy, Sectional perspective 1979
-

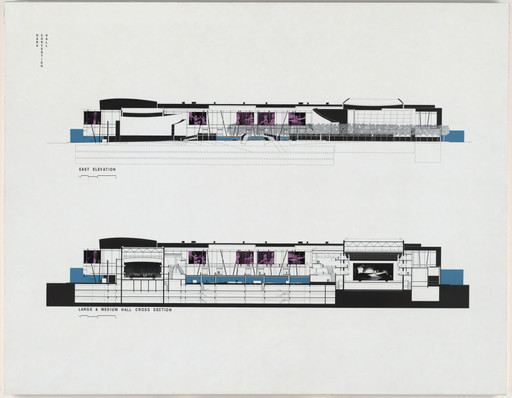

Scott Marble, Karen Fairbanks Nara Convention Hall Project, Nara, Japan, Competition drawing: east elevation and cross-sections of large and medium halls 1992
-
Joel Sanders Kyle Residence, Houston, Texas - Section 1995
-
Gordon Kipping Entity as Information Zoom 1995
-

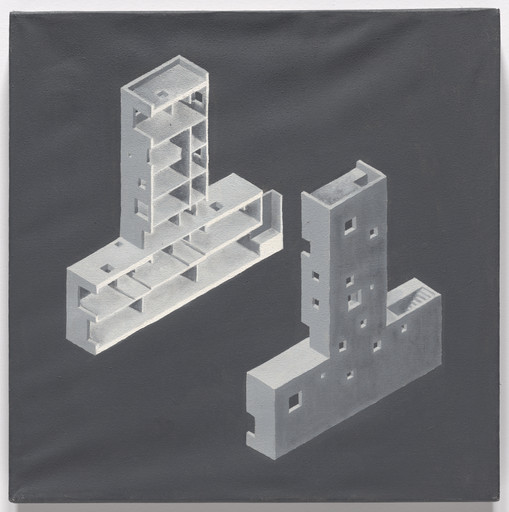

Mauricio Pezo, Sofía von Ellrichshausen Cien House, Concepción, Chile (Isometric section) 2009-2011
-
Rania Ghosn, El Hadi Jazairy After Oil (Strait of Hormuz Grand Chessboard) 2016
-
Zhu Pei Jingdezhen Imperial Kiln Museum, Jingdezhen, Jiangxi, China 2016–2020
