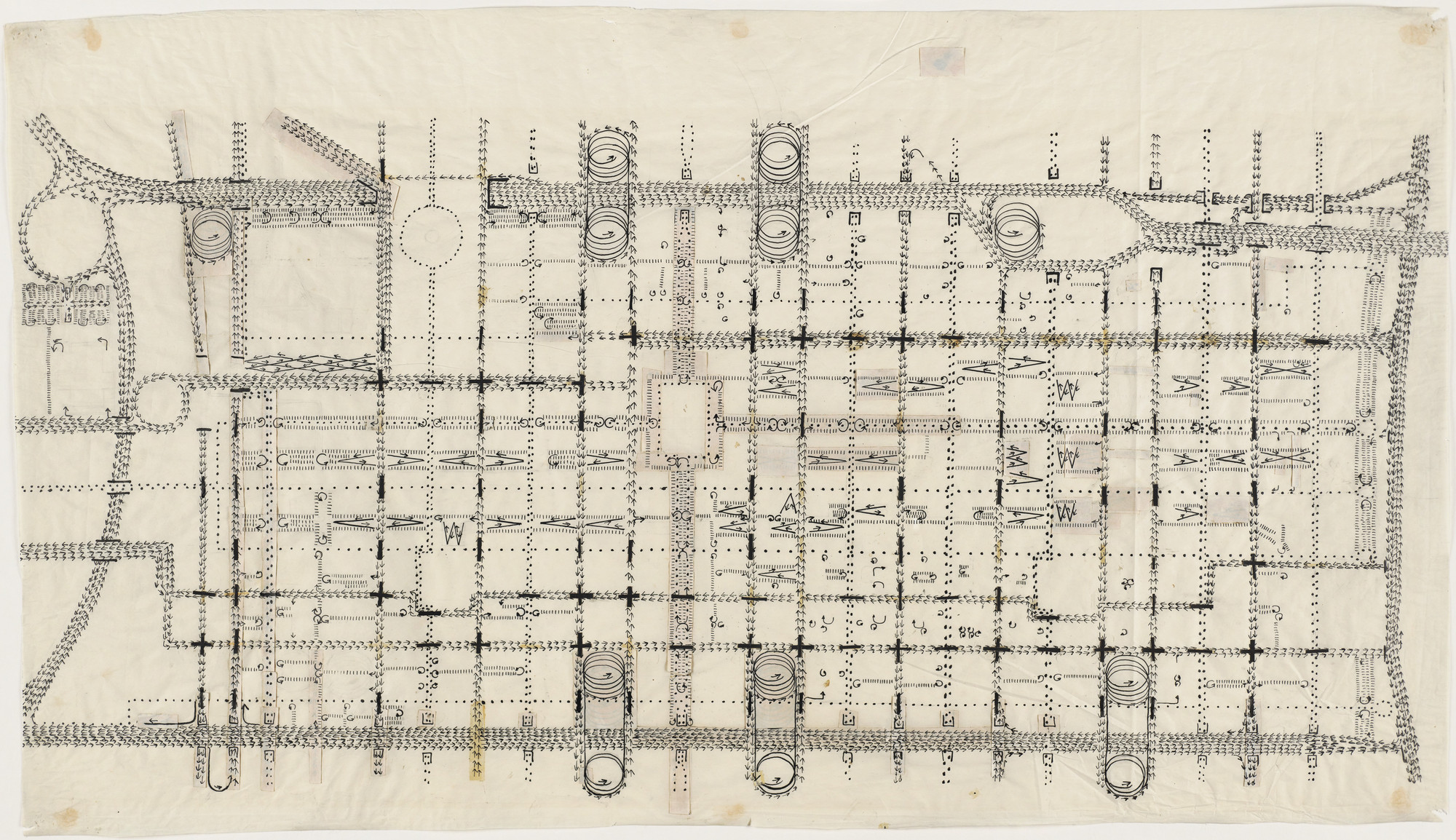

Louis I. Kahn. Traffic Study project , Philadelphia, PA (Plan of proposed traffic-movement pattern). 1952

Louis I. Kahn Traffic Study project , Philadelphia, PA (Plan of proposed traffic-movement pattern) 1952

  • Not on view

"What spaces, what activities, what buildings form the creative center of human communication?" This probing philosophical question, posed in 1955 by the American architect Louis I. Kahn, underlies the extraordinarily powerful buildings and projects for which he is known, as well as these two studies of Philadelphia's city center. In the 1950s Kahn had relatively little real work. Philadelphia, where he lived nearly all his life, was launching a decade of immense redevelopment, and Kahn was at the forefront. His numerous studies, many of them made independently without a commission, focused on the historic center city. These visionary drawings are significant not as blueprints for Philadelphia's redevelopment but because they reveal forms and ideas fulfilled in Kahn's later masterpieces.

The Traffic Study is a carefully ordered conceptual plan in which Kahn proposed a new traffic pattern. In an effort to untangle traffic congestion and to mitigate the haphazard proliferation of parking lots that plagued postwar American cities, Kahn reordered the streets according to a functional hierarchy. Like an idiosyncratic musical score, the drawing's abstract notational system corresponds to different tempos of traffic, such as the stop-and-go movement of trucks and buses (dotted lines), the fast flow of vehicles around the periphery (arrows), and the stasis of cars in parking garages (spirals). To explain his movement study, Kahn invoked a historical analogy: for him, the girdle of expressways and parking towers circling the city center metaphorically recalled the walls and towers that protected the medieval cities of Europe. Kahn's specific comparison was to the largely medieval town of Carcassonne, in the South of France: just as Carcassonne was a city built for defense, Kahn envisioned the modern city center having to defend itself against the automobile.

Publication excerpt from an essay by Peter Reed, in Matilda McQuaid, ed., Envisioning Architecture: Drawings from The Museum of Modern Art, New York: The Museum of Modern Art, 2002, p. 112.
Medium
Ink, graphite, and cut-and-pasted papers on paper
Dimensions
24 1/2 x 42 3/4" (62.2 x 108.6 cm)
Credit
Gift of the architect
Object number
389.1964
Copyright
© 2021 Estate of Louis I. Kahn
Department
Architecture and Design
