Front / Recto
- Title Untitled still from Film Study (Filmstudie) (1928)
- Negative Date 1927
- Print Date 1960-76
- Medium Gelatin silver print
- Dimensions Image 2 7/8 x 3 7/8" (7.3 x 9.8 cm)Sheet 3 1/4 × 4 15/16" (8.2 × 12.6 cm)
- Place Taken Berlin
- Credit Line Thomas Walther Collection. Gift of Thomas Walther
- MoMA Accession Number 1819.2001
- Copyright © 2015 Hans Richter
Back / Verso
- Mount Type No mount
- Marks and Inscriptions Inscribed in black ink on sheet verso, center: Filmstudy 26. Inscribed in pencil on sheet verso, bottom right: TW 880902.
The artist; by inheritance to the artist's estate (the artist's stepdaughter), by 1976 ; to George R. Rinhart, 1986 ; to Edwynn Houk Gallery, Chicago, 1987 ; purchased by Thomas Walther, probably September 1988 ; given to The Museum of Modern Art, New York, 2001.
 Edwynn Houk, conversation with Simon Bieling, New York, March 30, 2005.
 Ibid.; George Rinhart, letter to Susan Kismaric, June 2005; and Matthew Ortiz (Edwynn Houk Gallery), e-mail to Maria Morris Hambourg, April 30, 2014.
 Rinhart, letter to Kismaric; and Ortiz, e-mail to Hambourg.
 Thomas Walther archival no. TW 880902 on sheet verso.

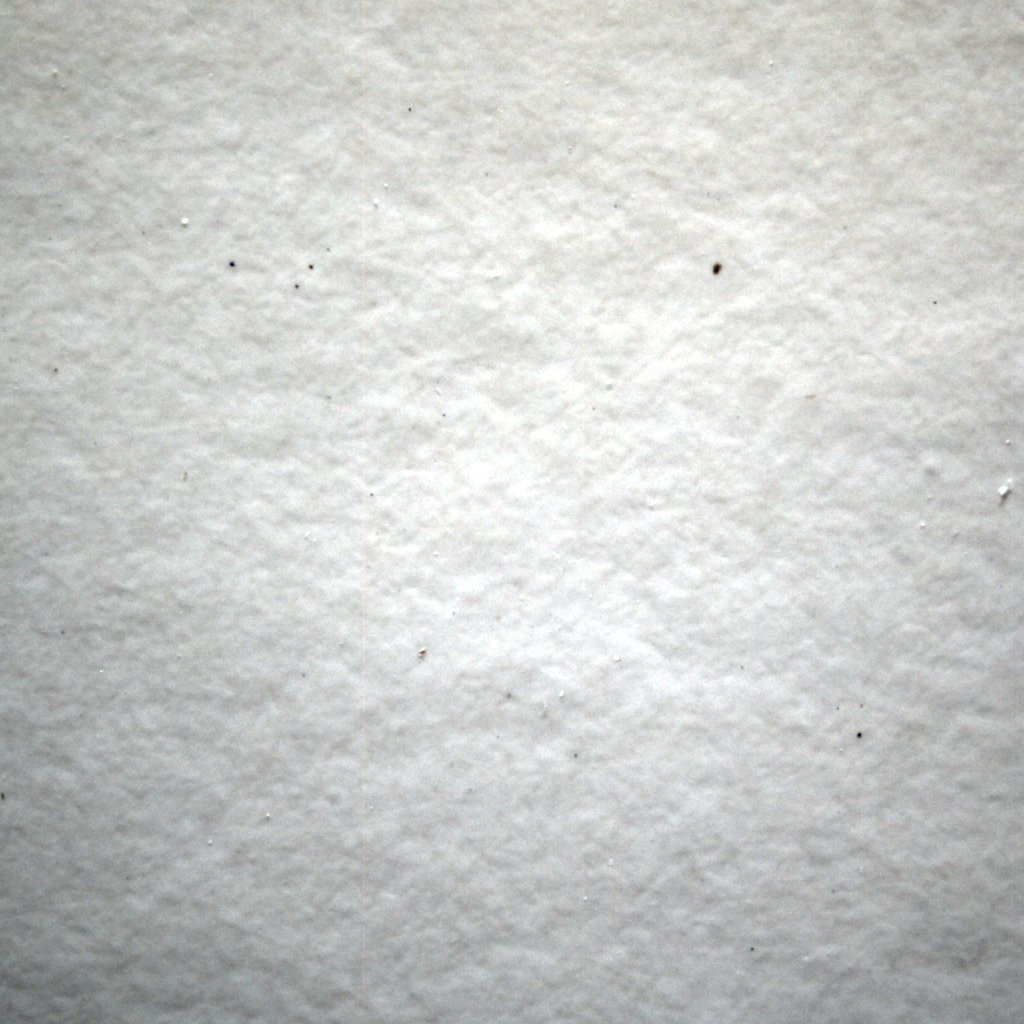

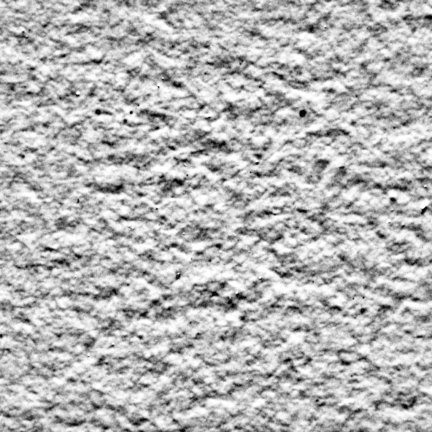

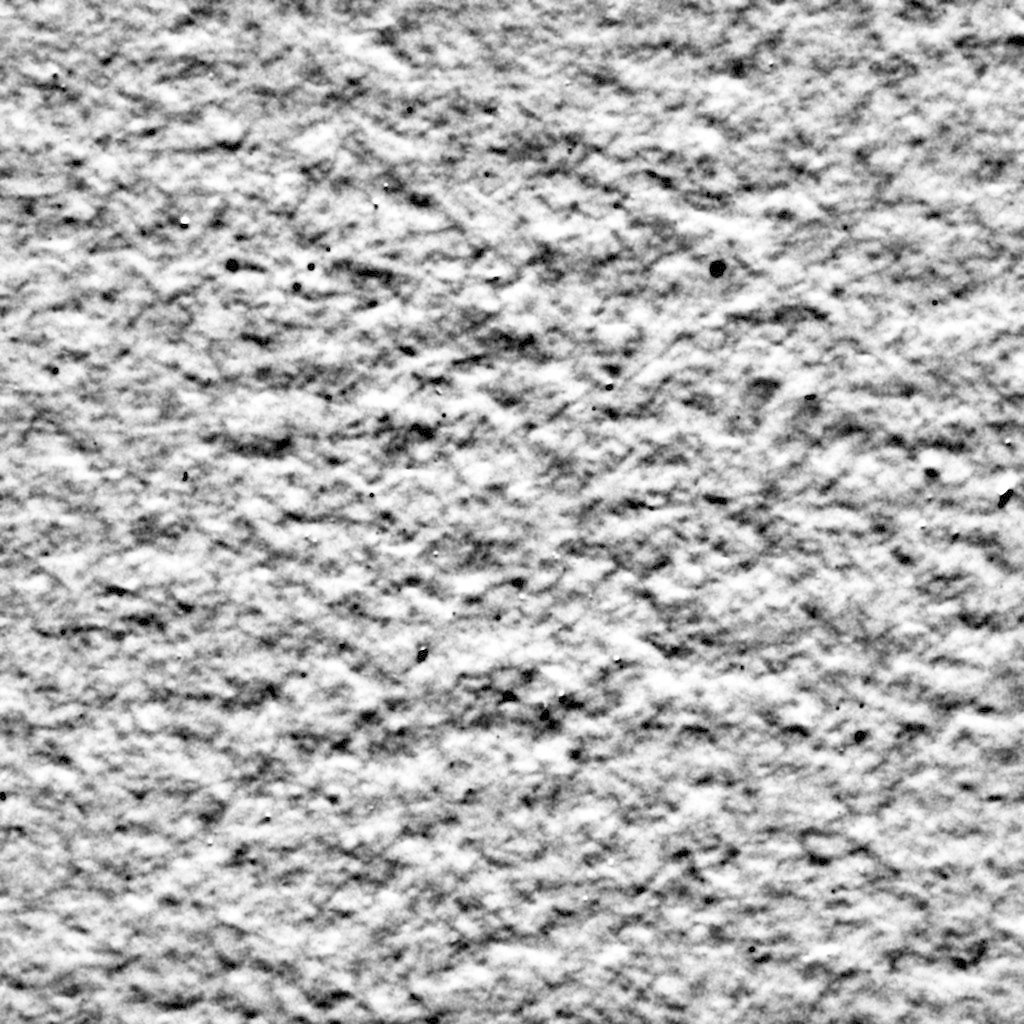

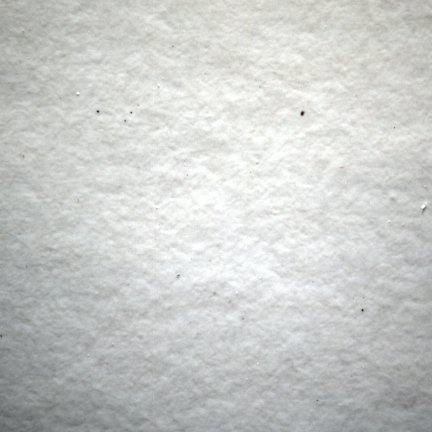

- Format Unknown
- Weight Single weight
- Thickness (mm) 0.18
- UV Fluorescence Recto positive Verso positive
- Fiber Analysis Softwood bleached soda 91% Softwood bleached sulfite Hardwood bleached sulfite 7% Rag 2%
- Material Techniques Developing-out paper
This work was determined to be a gelatin silver print via X-ray fluorescence (XRF) spectrometry.
The following elements have been positively identified in the work, through XRF readings taken from its recto and verso (or from the mount, where the verso was not accessible):
- Recto: Al, P, S, Sr, Ag, Ba
- Verso: Al, P, S, Sr, Ba

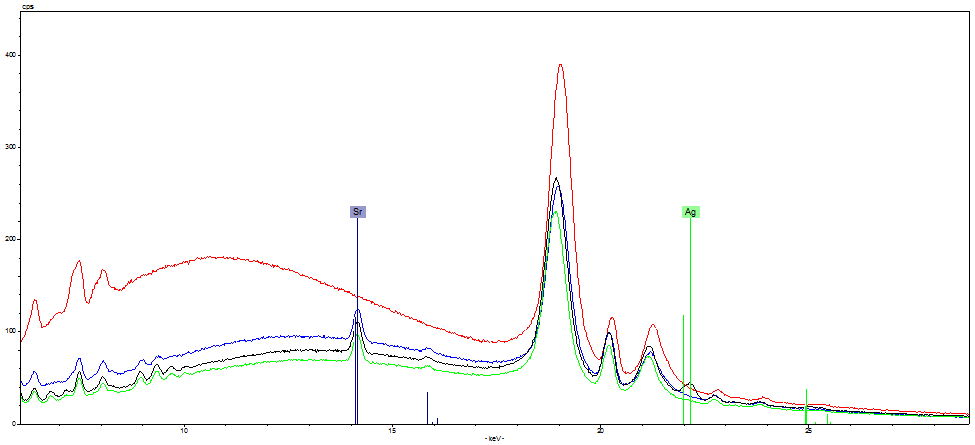

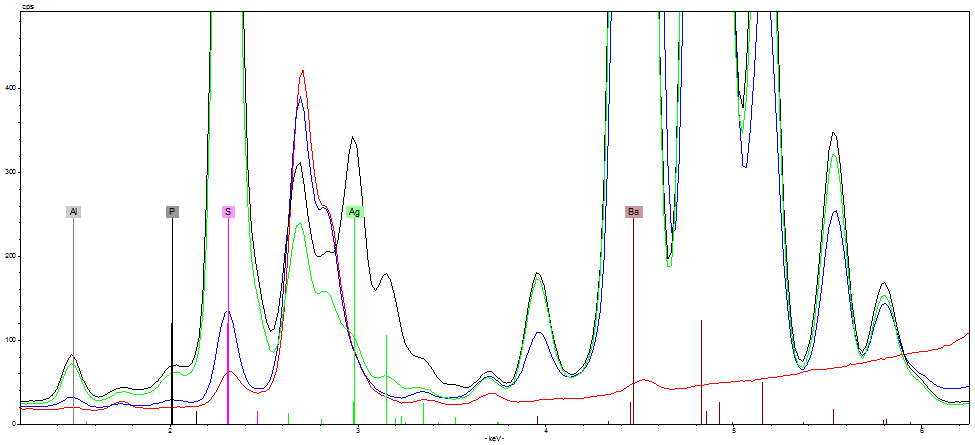

The graphs below show XRF spectra for three areas on the print: two of the recto—from areas of maximum and minimum image density (Dmax and Dmin)—and one of the verso or mount. The background spectrum represents the contribution of the XRF instrument itself. The first graph shows elements identified through the presence of their characteristic peaks in the lower energy range (0 to 8 keV). The second graph shows elements identified through the presence of their characteristic peaks in the higher energy range (8 to 40 keV).
- Cultural Hubs Berlin
