LE CORBUSIER KITCHEN CONSERVATION: FOCUS ON DESIGN

Le Corbusier Kitchen Conservation: Focus on Design

The Unité d’Habitation was a landmark in modern architecture and design, and one of the first attempts to create highly designed spaces for low-income families. Along with apartments, the building included a half floor reserved for merchants, a pre-school, and a rooftop playground with wading pool and gymnasium. Le Corbusier was extremely efficient in the use of space, modeling his design on that of cruise ships, particularly focusing on how every need of the passenger was contained within the tight boundaries and small interior spaces of the ship. The kitchen was extremely compact with low countertops and ceilings, but the efficiency of the design allowed the inhabitants to maximize the utility of the available space.

Color Palette
Despite the somewhat standardized design and manufacture of the building and the apartments, there was variation in the color schemes of how each kitchen was painted. Rather than creating a rigid plan, Le Corbuiser created a palette of colors and varnished surfaces for the kitchen, and established guidelines of how these painted and varnished surfaces should interact with one another.

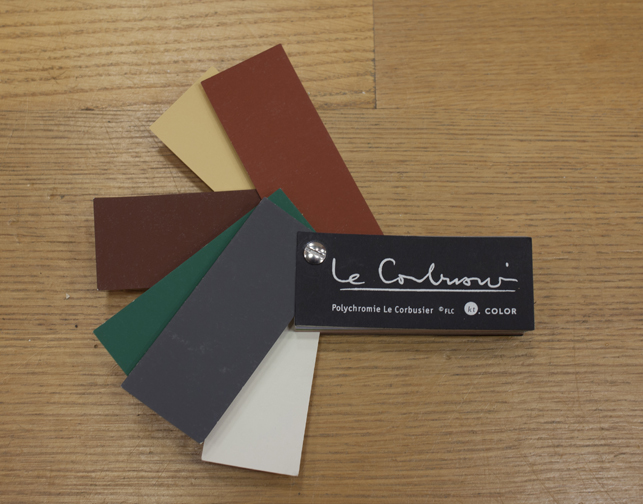

Color palette

Color palette

Bar cuisine

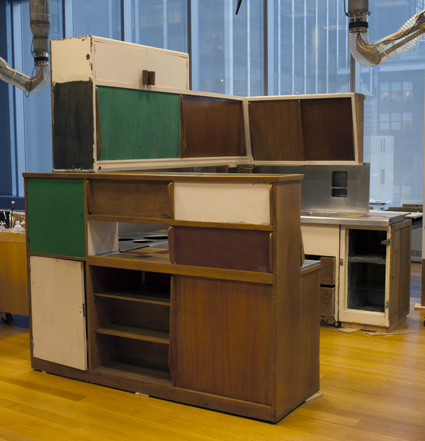

View of the front of the bar cuisine and Kitchen from what would be the living room of the apartment during conservation treatmen

View of the front of the bar cuisine and kitchen from what would be the living room of the apartment during conservation treatment


The bar cuisine at the front of the kitchen stood as a permeable half wall between the kitchen and living room, creating a distinct space for the kitchen while contributing to the open plan of the apartment. The sliding panels could be moved to allow food and dishes to be passed to people on the other side, and the low height allowed the hosts to speak to guests in the living room while cooking.

Initially, Le Corbusier was interested in prefabricating the kitchen as a whole. However, this proved not to be cost effective, thus the various elements of the kitchen were contracted out to different manufactures. The bar cuisine was the only part of the final design that was produced as a prefabricated single unit. Another feature that further distinguishes it from the rest of the components of the kitchen is its cast aluminum countertop. The rest of the counters were fabricated from sheet aluminum, bent and welded into shape and separate from the wooden frame they sit on.

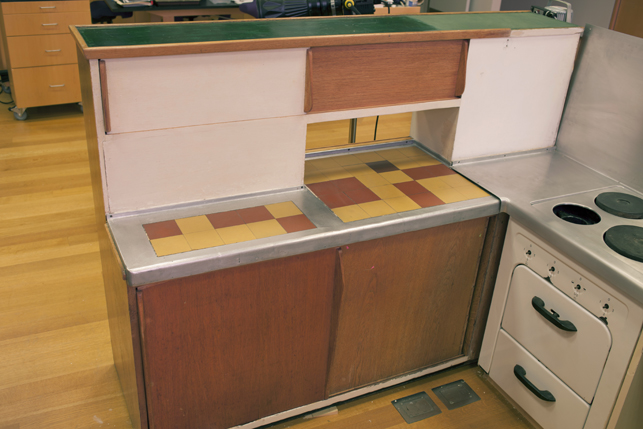

The interior side of the bar cuisine with the embedded tile countertop and cast aluminum counter. The sheet aluminum countertop around the stove can be seen on the right.

The interior side of the bar cuisine with the embedded tile countertop and cast aluminum counter. The sheet aluminum countertop around the stove can be seen on the right

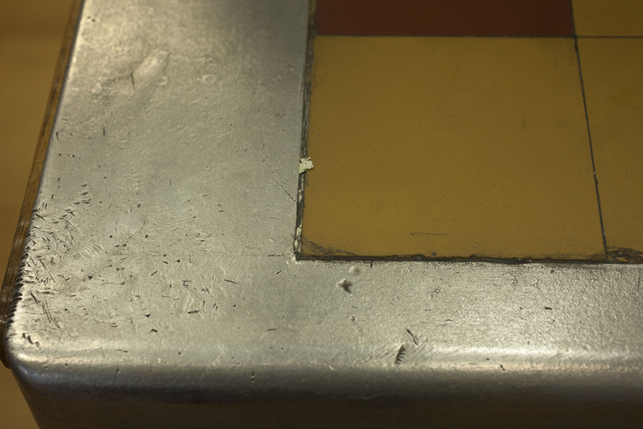

A detail of the surface of the cast aluminum countertop. The uneven surface is a result of the casting process.

A detail of the surface of the cast aluminum countertop. The uneven surface is a result of the casting process

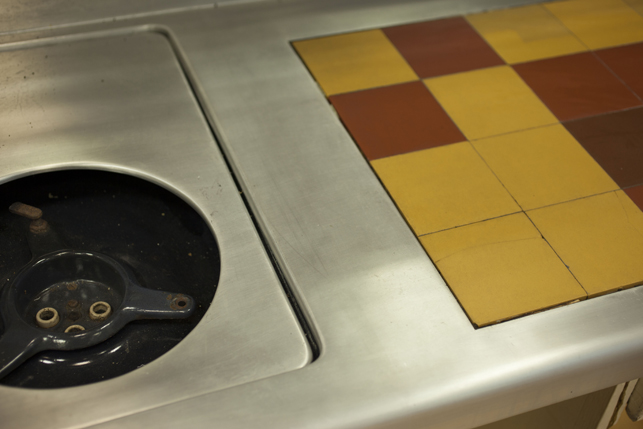

A detail of the bent and welded aluminum sheet countertop. The surface was polished to reduce the appearance of the welding lines. One can be seen running in-between the stove and the ceramic tiles.

A detail of the bent and welded aluminum sheet countertop. The surface was polished to reduce the appearance of the welding lines. One can be seen running between the stove and the ceramic tiles

Ceramic Countertops
There are three embedded ceramic tile countertops in the kitchen, providing several ready spaces for hot pots. These groups had standard configurations in all of the kitchens, except the tile group in the bar cuisine, which varied between two designs depending on whether the kitchen was on your left or right when entering the apartment.

Hallway Access Doors
One of the most iconic design features of the Unité d’Habitation are the three access panels from the interior of the kitchen onto the corridor outside the apartment. One provided access to the back of the ice box, one to the electric panel, and one opened onto a grocery basket installed next the front door. In 1953 it was still common in southern France for homes to have an ice box rather than a refrigerator. These access doors were an incredibly practical design addition for the residents, where often both parents were working. Merchants and the iceman could make deliveries to the apartment from the hallway, which Le Corbusier referred to as the rue interior, without the tenants having to answer the door or even be at home for the delivery.

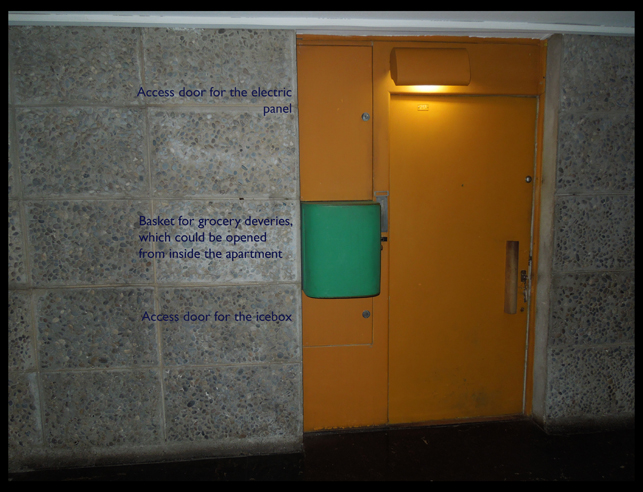

Image of the front door of an apartment in the Unité, with each of the hallway access panels.

Image of the front door of an apartment in the Unité, with each of the hallway access panels

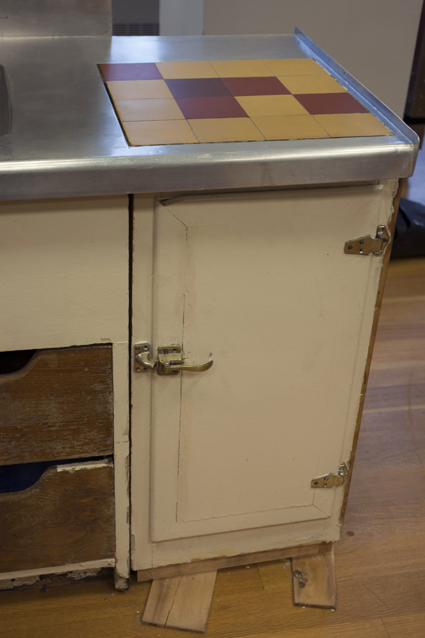

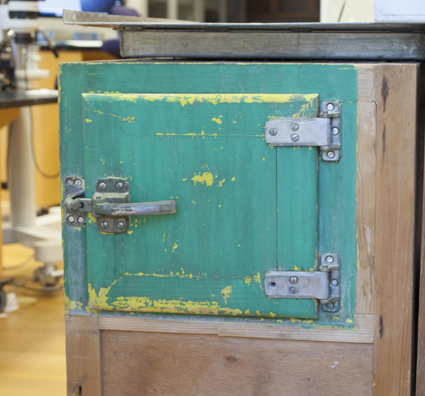

View of the closed ice box from inside the kitchen

View of the closed ice box from inside the kitchen

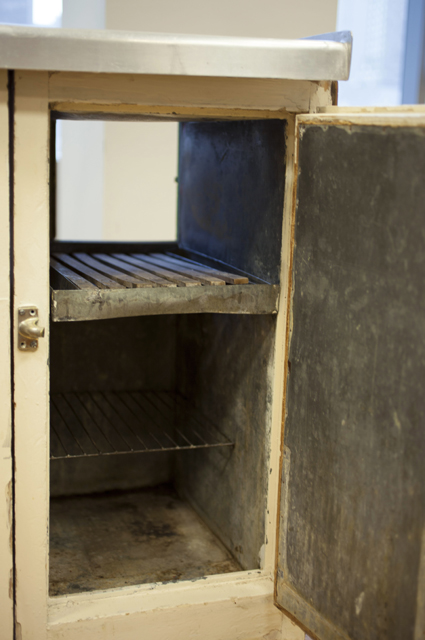

View through the open back panel of the ice box from inside the kitchen

View through the open back panel of the ice box from inside the kitchen

Once the hallway access door is open this inner leads into the back of the icebox.

Once the hallway access door is open this inner door leads into the back of the icebox

Pot Rack
Le Corbuiser included a unique hanging pot rack over the stove by adding knobs onto the front panel of the stove vent. This allowed for easy storage and access in a space that would otherwise be unusable.

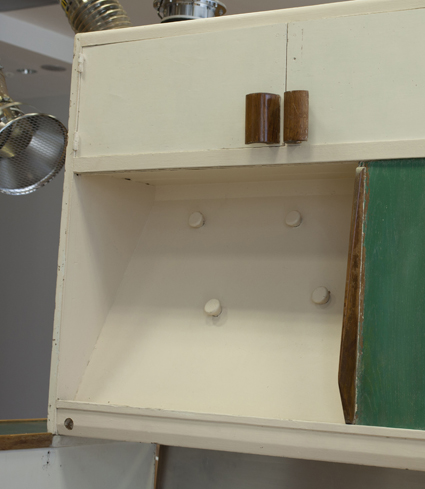

Pot rack of the MoMA Kitchen

Pot rack of the MoMA kitchen

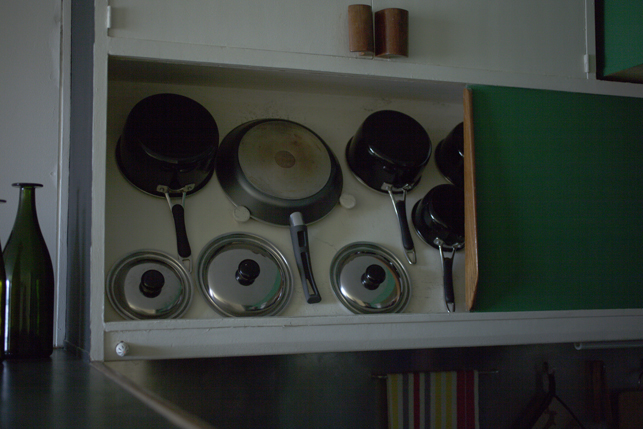

Pot Rack in use in the Unité, Apartment 50. Photo courtesy of Jean-Marc Drut.

Pot rack in use in the Unité, Apartment 50. Photo courtesy of Jean-Marc Drut
